Headphones

The role of MEMS speaker technologies in headphones

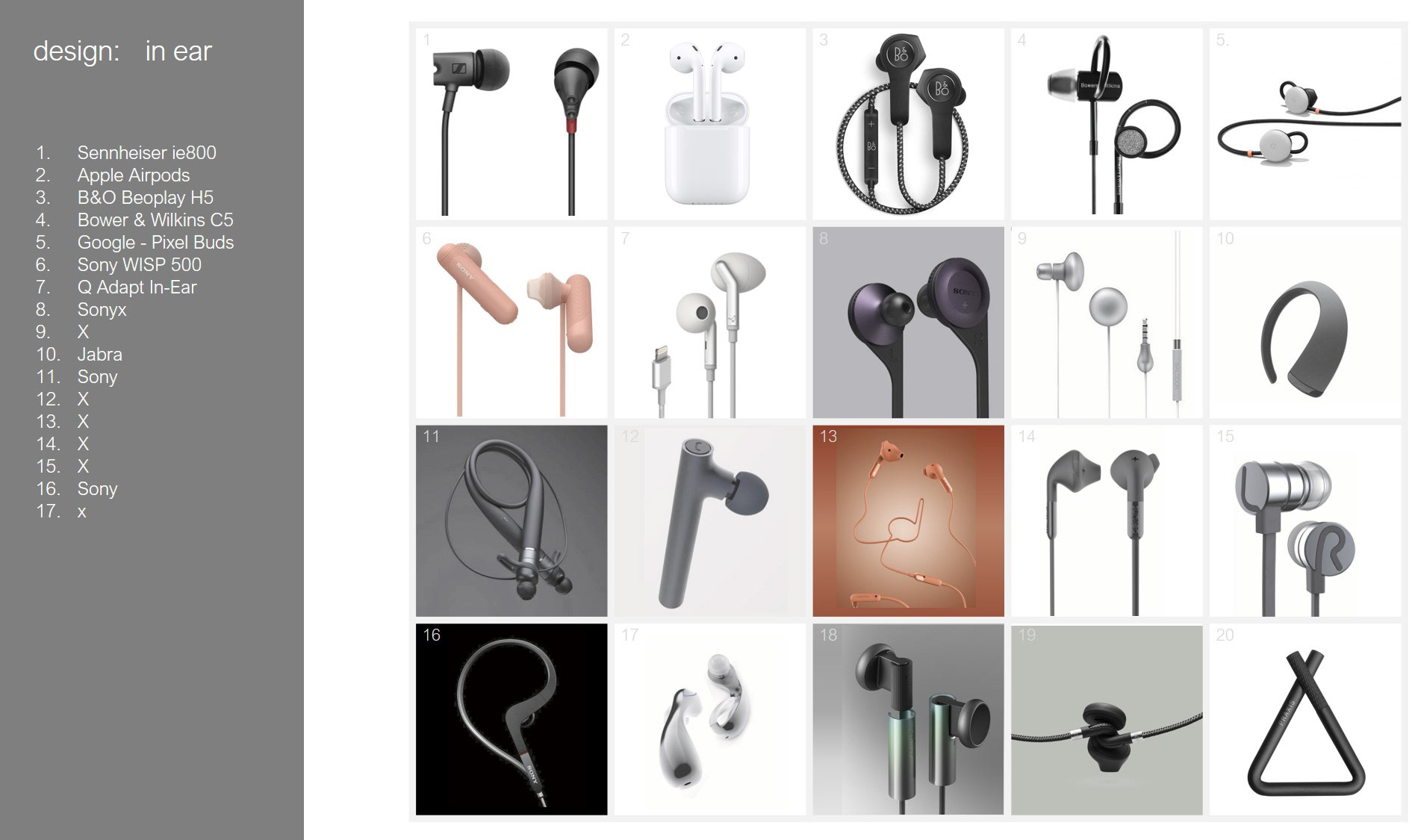

Initial desk research, looking for strong visual and technical solutions.
Initial desk research, looking for strong visual and technical solutions.

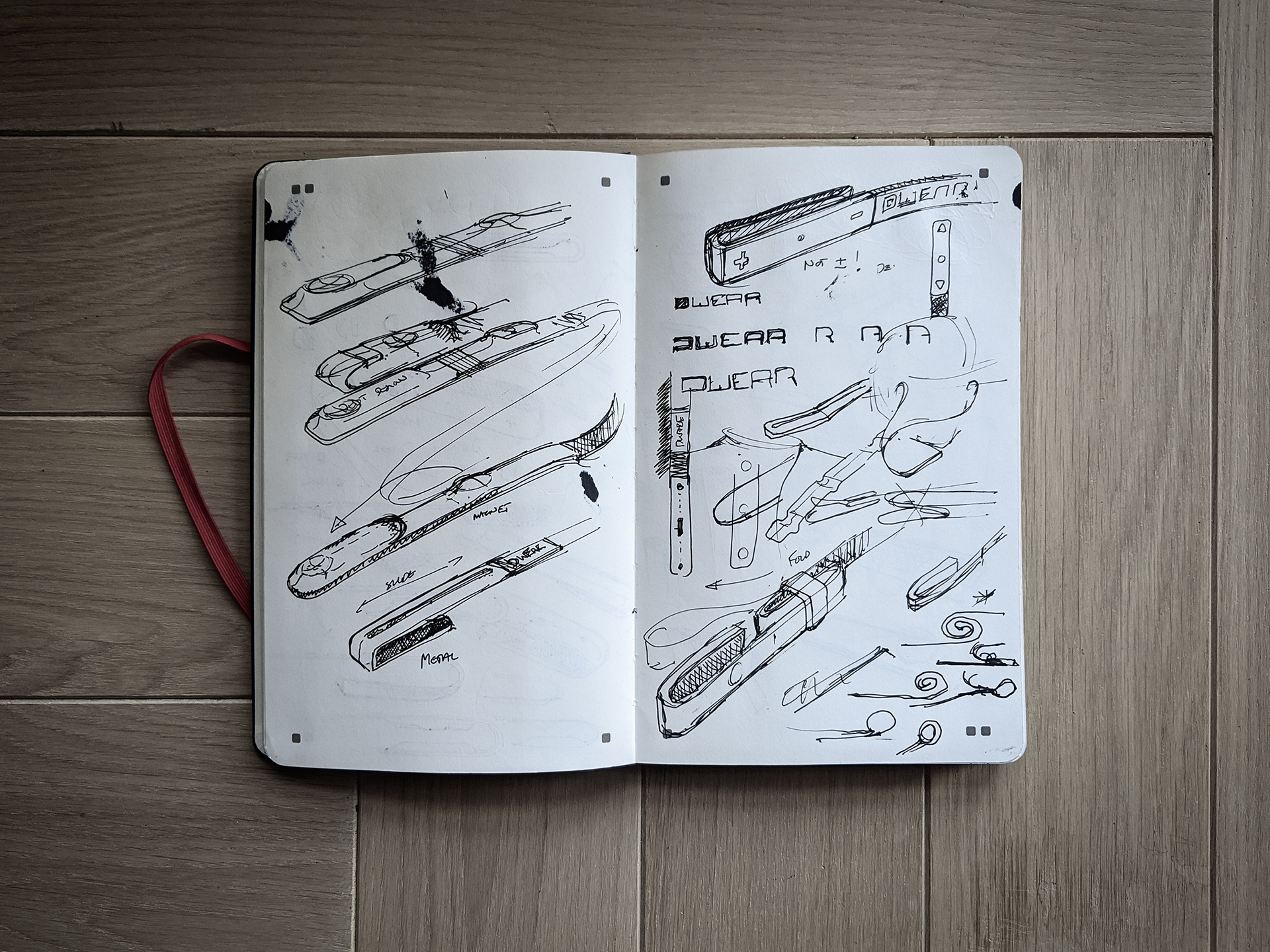

Early thumbnail sketches to formulate the key concept elements
Early thumbnail sketches to formulate the key concept elements

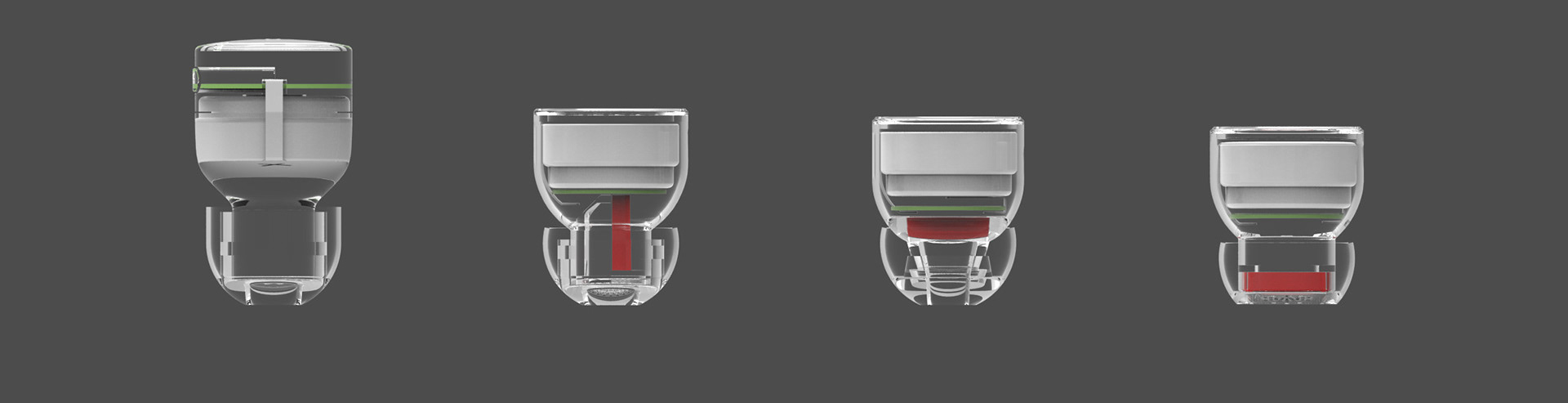

Understanding compent placement, and size reduction opportunities based on the Mems speaker which is only 5 x 4 x 1mm
Understanding compent placement, and size reduction opportunities based on the Mems speaker which is only 5 x 4 x 1mm
Headphones – image 4
Headphones – image 5
Headphones – image 6

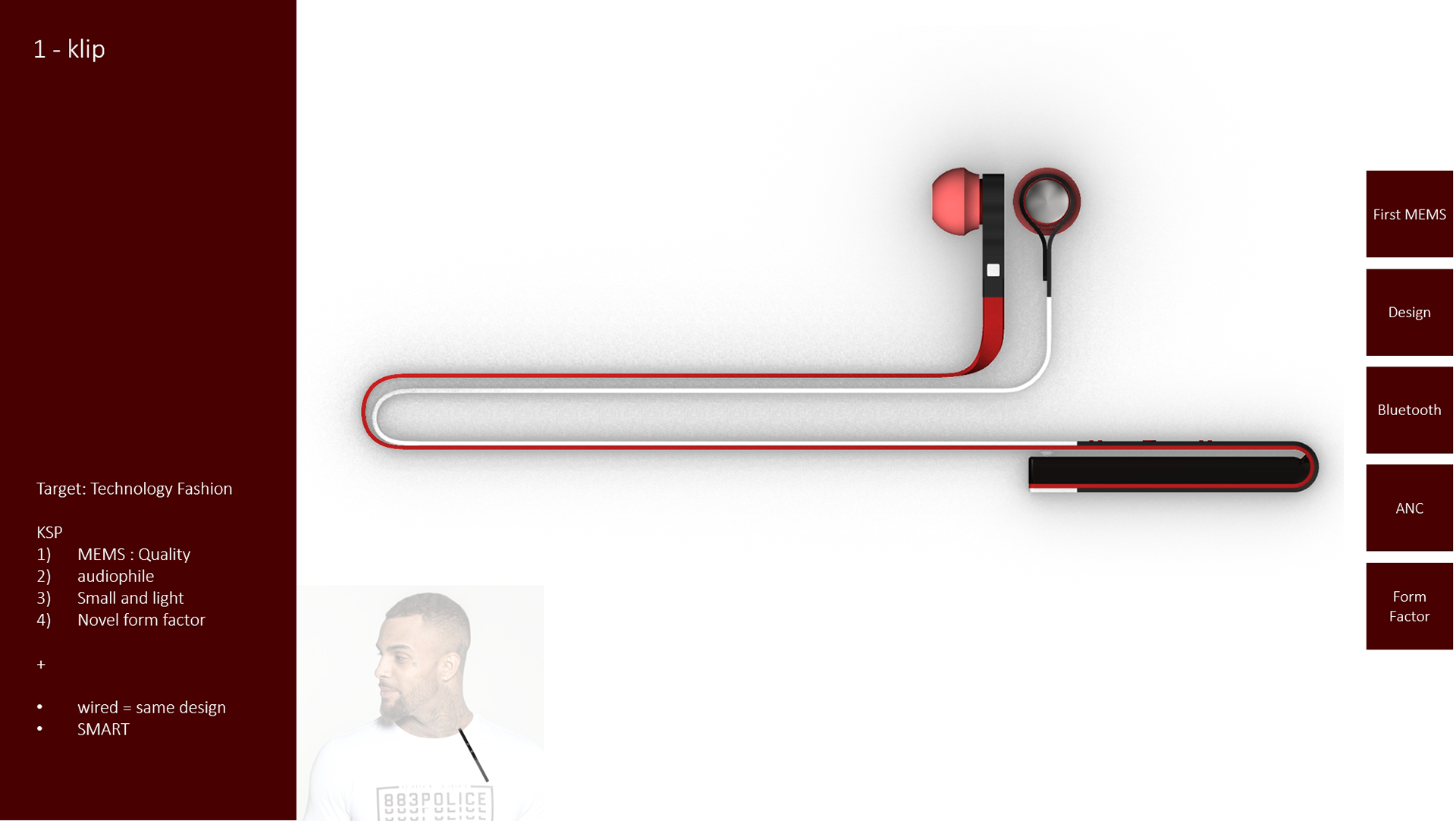

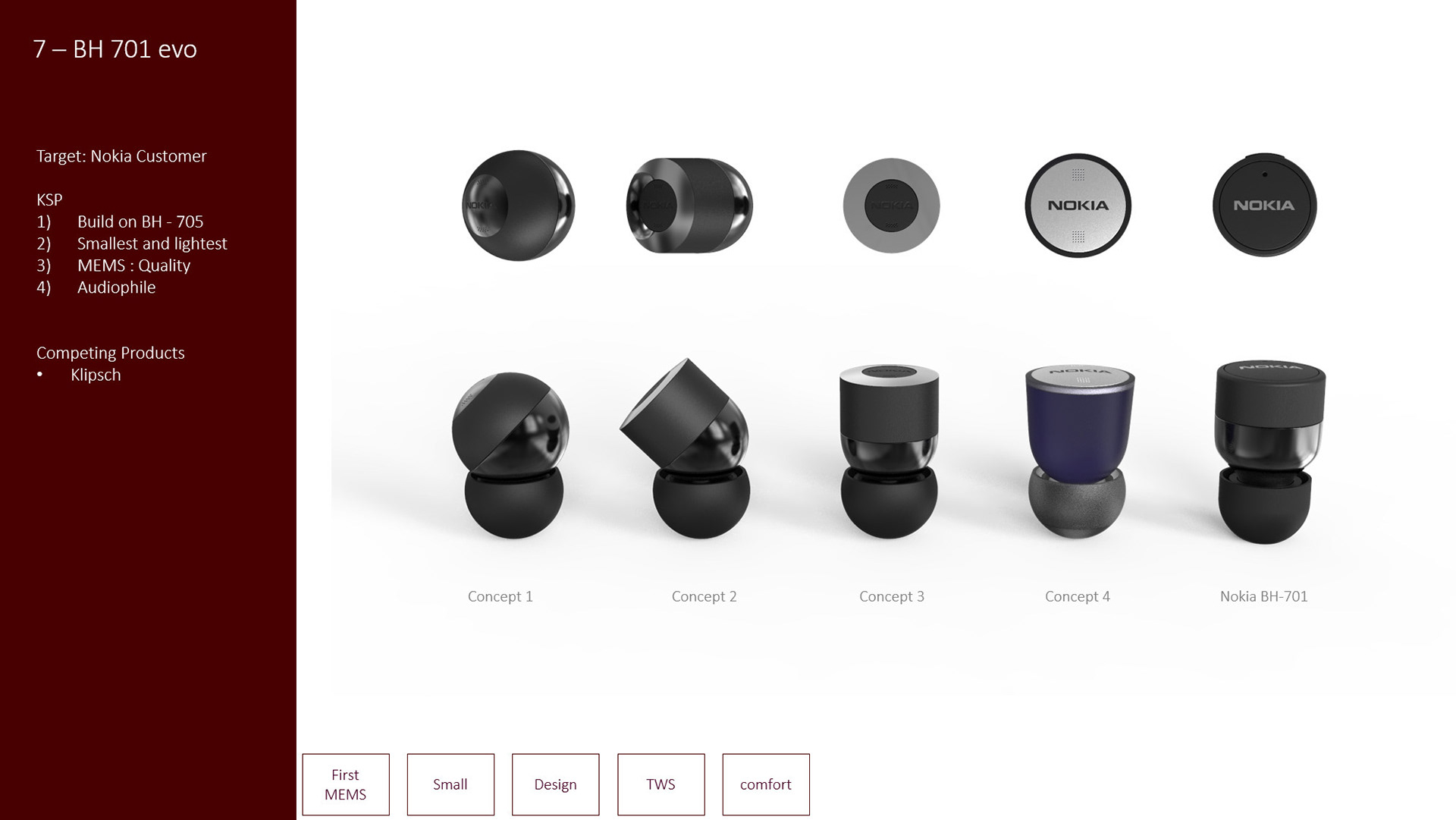

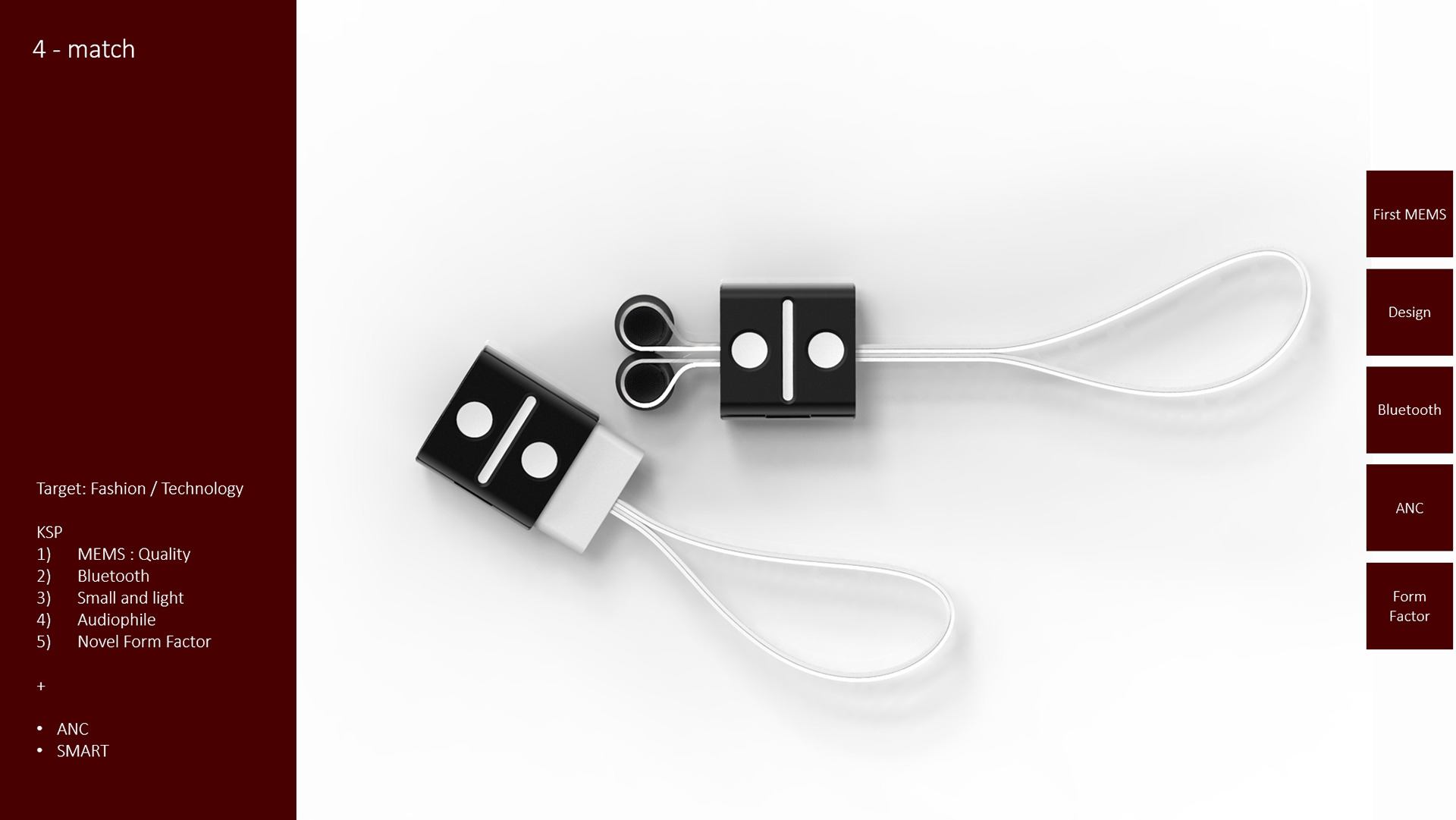

Iinitial concept routes covering a range of simple ideas to differentiate the products.
Iinitial concept routes covering a range of simple ideas to differentiate the products.

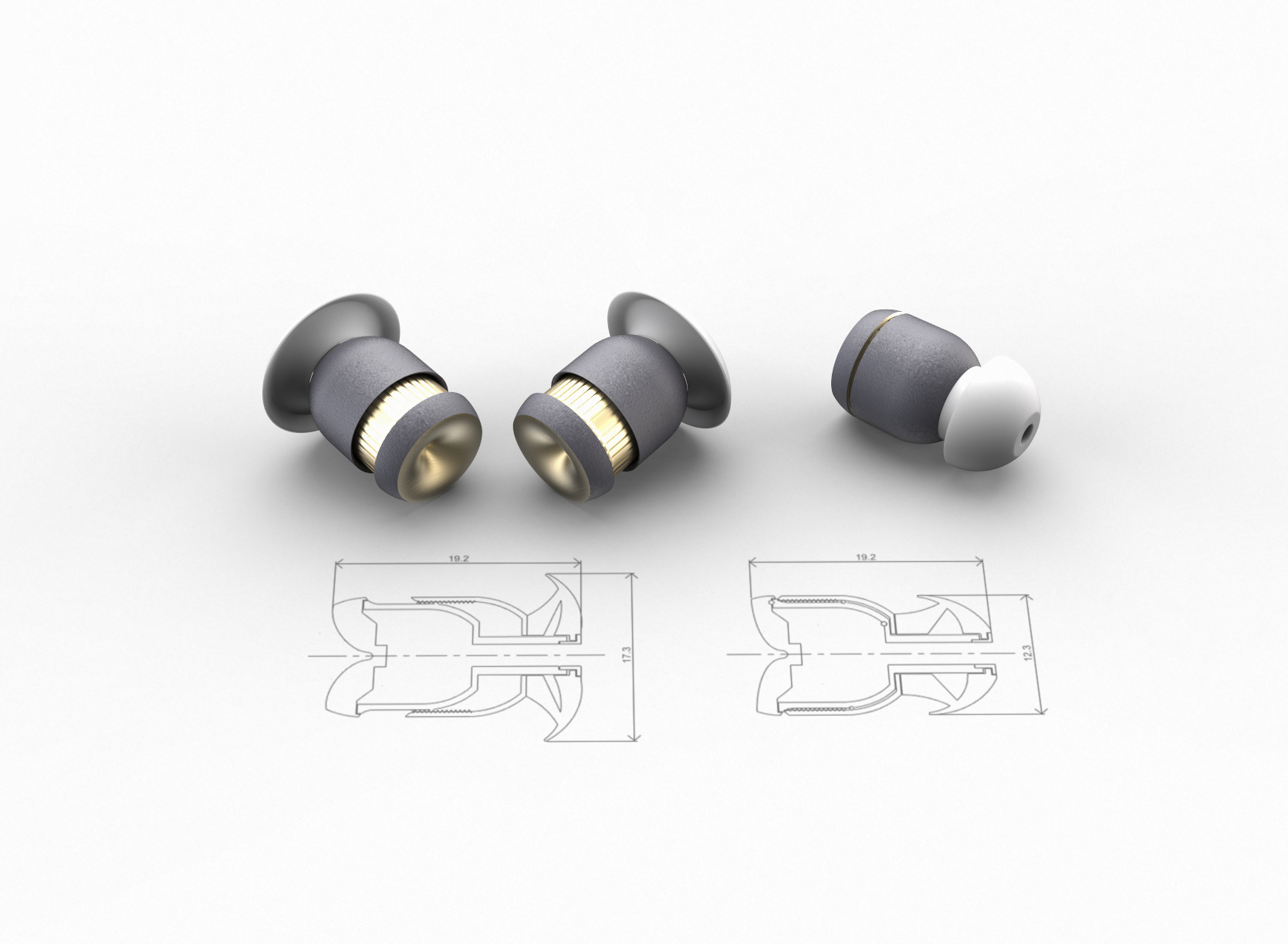

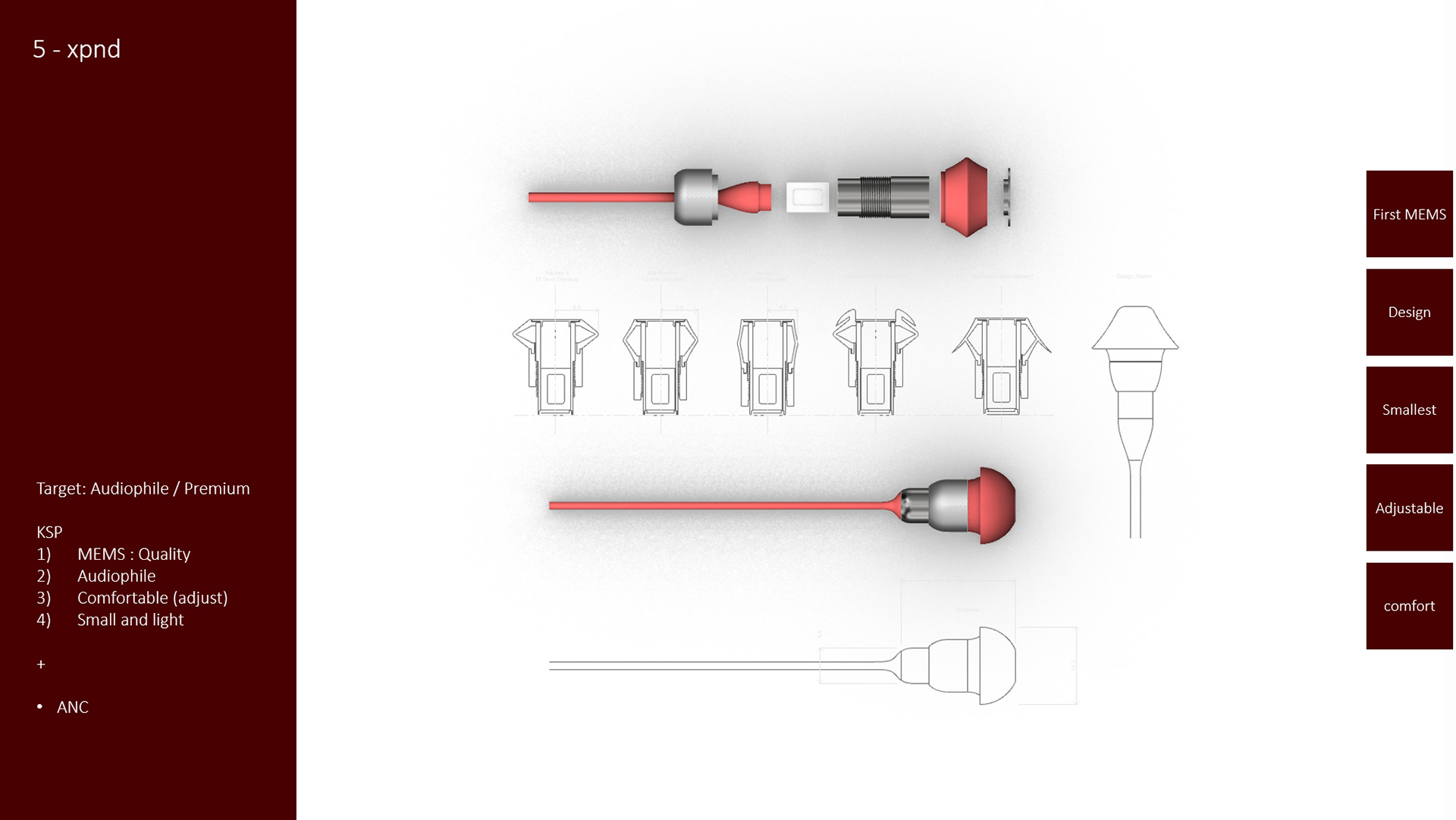

A quick technical study looking at expandable ear buds for adjustability
A quick technical study looking at expandable ear buds for adjustability

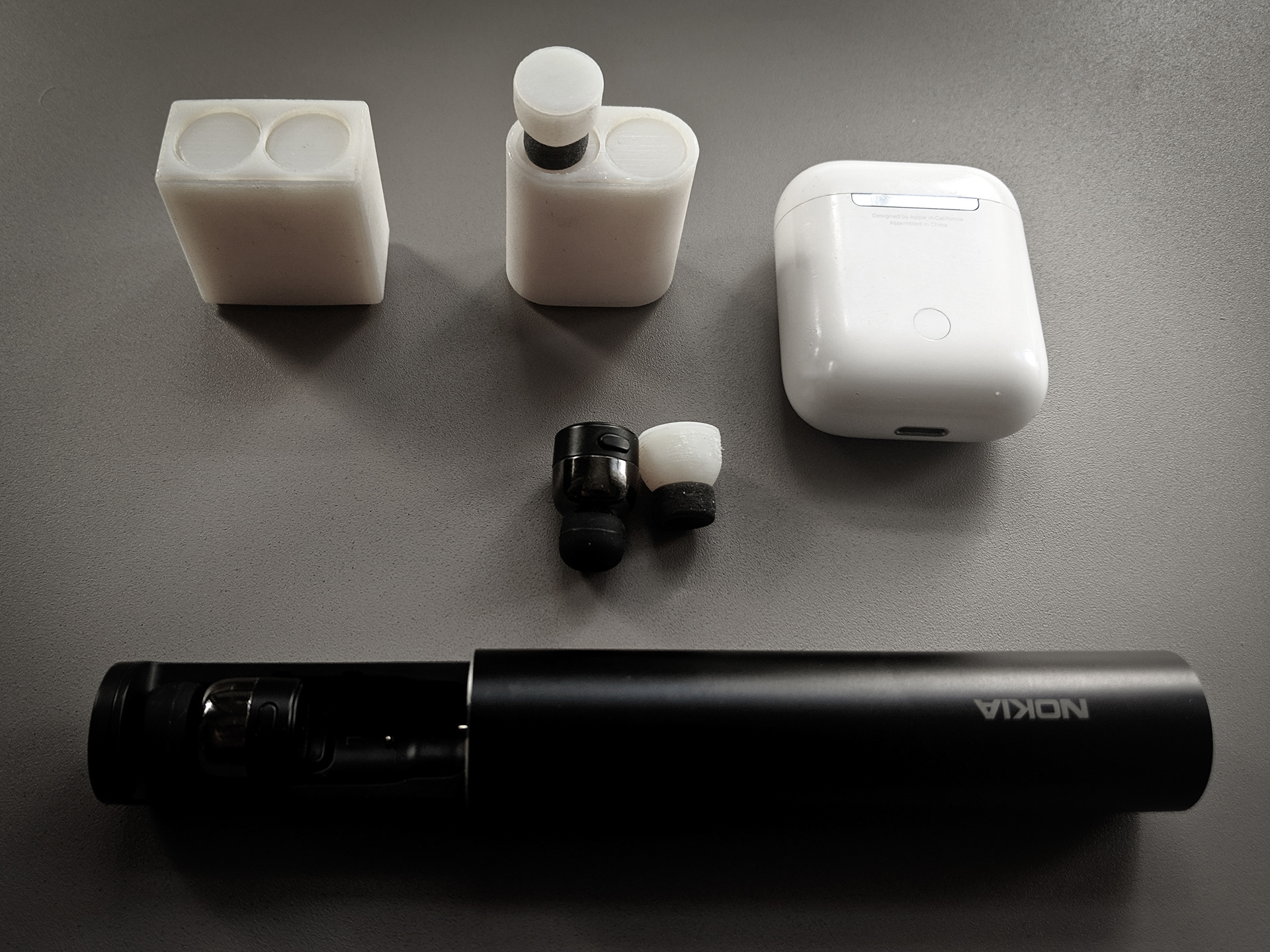

3d printed prototypes, looking at size and mechanical behaviors, with comparison to existing solutions.
3d printed prototypes, looking at size and mechanical behaviors, with comparison to existing solutions.
2 selected routes catering for low and high price points: A contracting volume for compact charge and storage, and a more simple spherical design with a tactile
2 selected routes catering for low and high price points: A contracting volume for compact charge and storage, and a more simple spherical design with a tactile case.
